Round Hole Push Mount Cable Ties
Round Hole Push Mount Cable Ties Product List
<--Swipe the View Table Left and Right-->
| Item NO. |
Sketch Map | Width (mm) |
Length (mm) |
HoleDla Φ | Panel Thickness | Max.Bundle Dia |
|---|---|---|---|---|---|---|

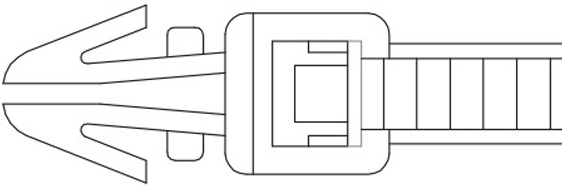

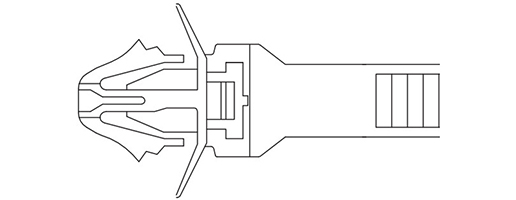

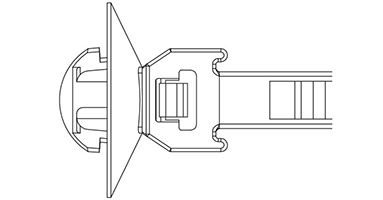

| MOC-2.5×110Φ4.8 |  |
2.5 | 110 | Φ4.8 | 2.4 | 22 |

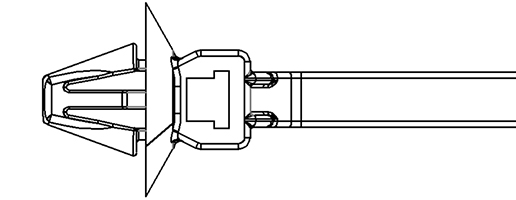

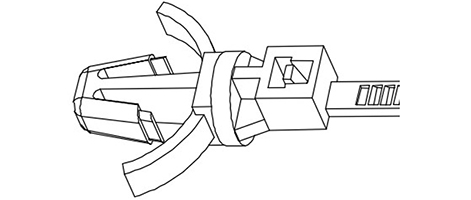

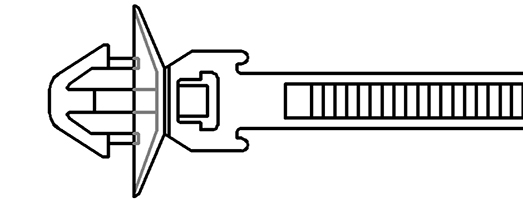

| MOC-3.6×95Φ4.7-5.6 |  |
3.6 | 95 | Φ4.7-5.6 | 0.8-2.1 | 32 |

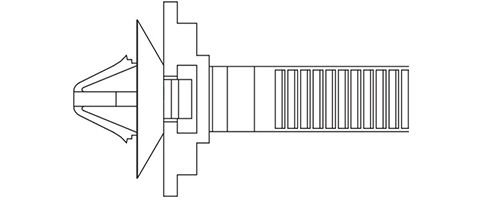

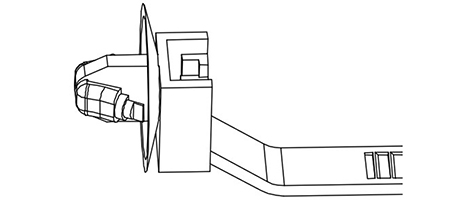

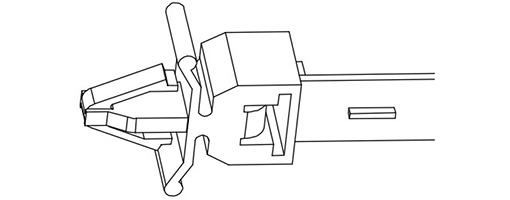

| MOC-2.5×132Φ5.0 |  |
2.5 | 132 | Φ5.0 | 0.6-2.5 | 25 |

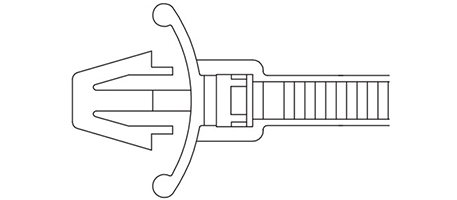

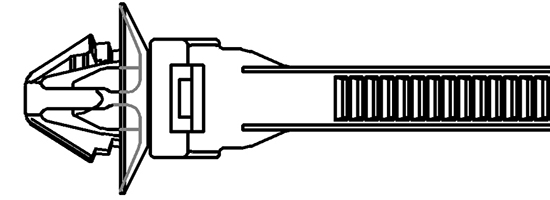

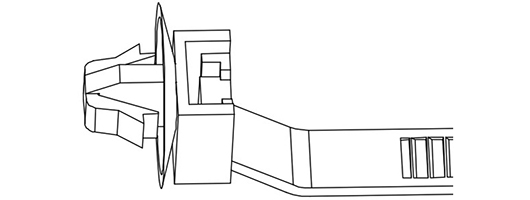

| MOC-4.6×143Φ6.3-7.0 |  |
4.6 | 143 | Φ6.3-7.0 | 0.7-3.0 | 27 |

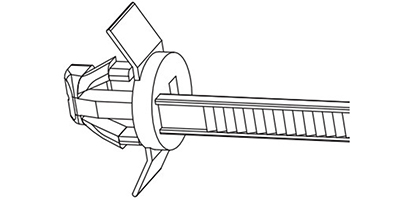

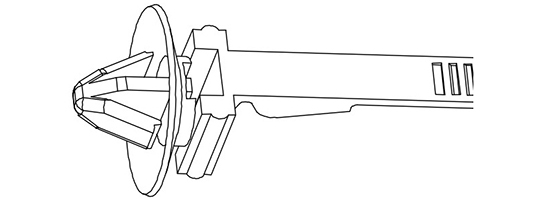

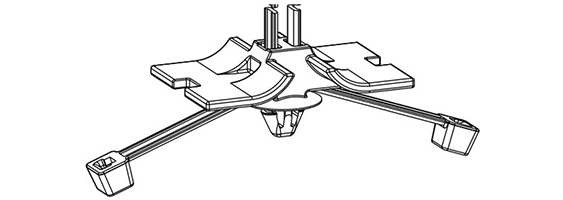

| MOC-4.6×200Φ6.3-7.0 | |
4.6 | 200 | Φ6.3-7.0 | 1.8-2.5 | 45 |

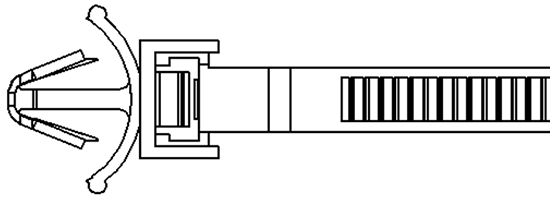

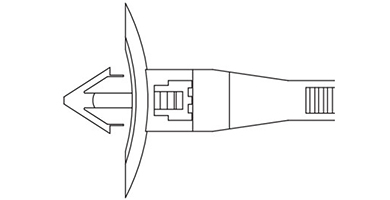

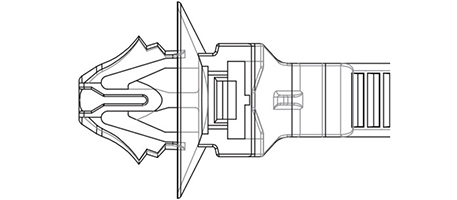

| MOC-3.4×121.5Φ6.4 |  |
3.4 | 121.5 | Φ6.4 | - | 25 |

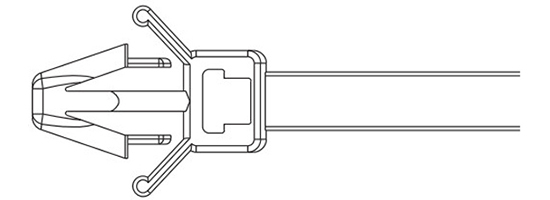

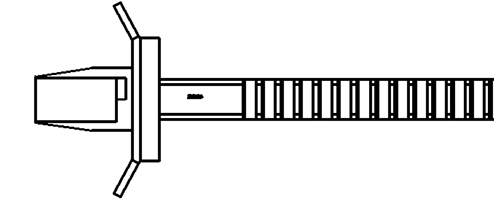

| MOC-5.5×170Φ6.5-7.0 |  |
5.5 | 170 | Φ6.5-7.0 | 1.0-3.0 | 38 |

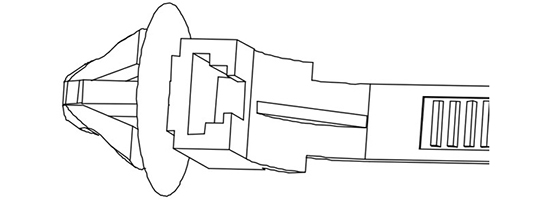

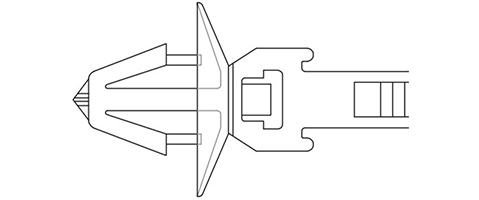

| MOC-4.2×113Φ7.0 |  |
4.2 | 113 | Φ7.0 | 0.6-1.2 | 20 |
| MOC-4.7×165Φ7.0 |  |
4.7 | 165 | Φ7.0 | 0.6-2.0 | 30 |
| MOC-8.3×124Φ7.0 |  |
8.3 | 124 | Φ7.0 | 0.6-2.5 | 20 |
| MOC-8.2×169Φ7.0 |  |
8.2 | 169 | Φ7.0 | 0.6-3.0 | 30 |
| MOC-4.8×164Φ7.0-8.0 |  |
4.8 | 164 | Φ7.0-8.0 | 1.0-3.0 | 35 |
| MOC-4.7×158Φ5.2-5.6 |  |
4.7 | 158 | Φ5.2-5.6 | 0.7-1.3 | 35 |
| MOC-4.7×158Φ6.5 | |
4.7 | 158 | Φ6.5 | 0.7-1.3 | 35 |
| MOC-4.7×160Φ6.5-7.0 |  |
4.7 | 160 | Φ6.5-7.0 | 2.0-3.0 | 35 |
| MOC-6.6×166Φ6.5 |  |
6.6 | 166 | Φ6.5 | 0.6-2.0 | 35 |
| MOC-6.8×166Φ6.5-7.0 |  |
6.8 | 166 | Φ6.5-7.0 | 1.0-3.0 | 35 |
| MOC-6×175Φ6.5-7.0 |  |
6 | 175 | Φ6.5-7.0 | 1.0-3.0 | 40 |
| MOC-4.7×160Φ6.5-7.0 |  |
4.7 | 160 | Φ6.5-7.0 | 1.9-2.2 | 35 |
| MOC-6.7×162Φ7.0 |  |
6.7 | 162 | Φ7.0 | 0.6-2.0 | 30 |
| MOC-5×163Φ7.0 |  |
5 | 163 | Φ7.0 | 0.6-2.0 | 30 |
| MOC-6.5×166Φ7.0 |  |
6.5 | 166 | Φ7.0 | 0.6-2.0 | 35 |
| MOC-6×115Φ7.0 |  |
6 | 115 | Φ7.0 | 0.6-2.6 | 20 |
| MOC-5.3×160Φ7.0 |  |
5.3 | 160 | Φ7.0 | 0.6-2.6 | 38 |
| MOC-7.9×142Φ7.0 |  |
7.9 | 142 | Φ7.0 | 0.6-3.5 | 30 |
